High-End Solder Paste Machine for High-Precision Printing Process

Shenzhen Hansome Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

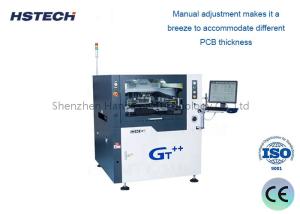

High-End Solder Paste Machine for High-Precision Printing Process

  • 1
  • 2

Brand Name : GKG

Model Number : G9+

Certification : CE,TUV,ROHS

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 7-15days

Packaging Details : Wooden Package

Product name : High-end Solder paste printing machine

Other name : Automatic Screen Printing Machine

PCB size : 50x50~450x340mm

Transport height : 900±40mm

Air pressure : 4-6kgf/cm³

PCB thickness : 0.4-6mm

Max board weight : 5kg

Machine weight : 1000kg

Contact Now

Automatic Solder Paste Printer for Industrial 4.0 MES System

Introduction

The G9+ Automatic Solder Paste Printing Machine is a premium equipment tailored for high-end SMT applications, capable of fulfilling the demanding printing processes of 03015 components, 0.25 pitch, as well as achieving high precision and high-speed operations.

Specification

Model G9+
Max PCB Size 450x340mm
Min PCB size 50x50mm
PCB thickness 0.4-6mm
Max board weight 5kg
Transport height 900±40mm
Board edge gap 2.5mm
Board height 15mm
Transport direction L-R,R-L
Transport speed max 1500mm/s, program control
Transport method One stage
WIdth adjustment automatic
I/O interface SMEMA
PCB positioning (support method) Magnetic pin/support block/manual up-down table
PCB clamping system
Patented over the top clamping
Side clamping
Adsorption function
Print snap-off
0-20mm
Print mode
one/twice
Print Speed
10-200mm/sec
Print Mode
One /Twice
Squeegee Type
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
Print pressure 0.5-10kg
Template fram size 470*370mm~737*737mm(20-40thickness)
Cleaning System
Droops of rain type cleaning system
Reinforced vacuum absorption
Dry, wet vacuum three modes
Back and forth cleaning
CCD FOV
10x8mm
Fiducial mark types Standard Fiducial mark shape
Pad
Hole
Camera system Look up/down optics structure
CCD digital camera
Geometry pattern match

Machine Performance

Model G9+
Repeat position accuracy ±12.5um@6,CPK≥2.0
Print accuracy ±18um@6,CPK≥2.0
Print cycle time <7.5 sec
Based on the third party test system(CTQ) verify the actual solder paste printing position repeat precision

Whole Machine Specification

Power supply
AC:220±10%,50/60HZ, 3.0KW
Air pressure
4~6 kgf/cm²
Air consumption
around 5L/min
Operating temperature
-20℃~+45℃
Operating humidity
30%~60%

Machine Dimensions(without tower light)

1172(L) x 1385(W) x 1530 (H)mm
Machine Weight
Approx: around 1000Kg

Features

  1. CCD Digital System: Featuring an entirely new optical path system, the CCD digital system provides uniform circular illumination and high-brightness coaxial lighting. With dual light source systems, brightness can be infinitely adjusted, enabling easy recognition of diverse mark points (including uneven ones) on tin-plated, copper-plated, silver-plated, hot air-soldered, FPC, and various PCB colors.

  2. High-Precision PCB Thickness Adjustment: Boasting an extremely reliable structure with stable XY movement, manual adjustment makes accommodating different PCB thicknesses a breeze.

  3. Guide Rail Positioning System: The innovative guide rail positioning system includes a detachable pattern guide rail and a programmable flexible side clamp, specially designed for FPC and PCB warpage. A unique clamping plate device ensures precise positioning, and software programming allows automatic stretching and retraction to accommodate varying PCB thicknesses.

  4. Revolutionary Squeegee Structure Design: The new squeegee structure adopts a comprehensive system that enhances stability and extends the lifespan.

  5. High-Speed Stencil Cleaning: The downward dispensing cleaning structure effectively prevents clogged openings, a common cause of ineffective cleaning. The length of solvent dispensed can be easily adjusted through software control.

  6. New Multi-Function Interface: The interface is designed for simplicity, clarity, and user-friendliness. It includes real-time temperature and humidity monitoring functions, making it easy for users to monitor and adjust conditions as needed.

High-End Solder Paste Machine for High-Precision Printing Process

Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.

We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
