Name: Blade Moving 600mm Cutting Length Vcut PCB Separating Machine
Brand: HSTECH
Price: 1 USD

Brand Name : HSTECH

Model Number : HS-206

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100pcs per week

Delivery Time : 5-7 work days

Packaging Details : Wooden package

Product name : Blade Moving PCB Separator

Other name : V-cut PCB Separator

Blade : High speed steel

Air pressure : 0.4-0.6Mpa

PCB Length : Max 400mm or 600mm

Warranty : 1 year

Contact Now

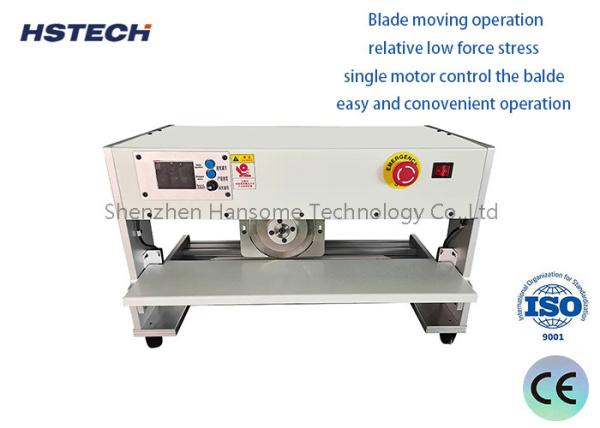

Blade Moving 600mm Cutting Length V-cut PCB Separating Machine

Specification

Model	HS-203	HS-206
Principle	Board insert to the V-slot,blade moving cutting
Blade	Bottom linear balde, upper circular blade
Voltage	AC110V/220V 50/60Hz
Blade size(circular blade)	ϕ125mm30mm3mm
Blade size(linear blade)	420mm×65mm×6mm
Max cutting length	5~400mm	5~600mm
PCB thickness	0.8~3mm
Separation speed	300~500mm/second(adjustable)
Separation width	Best 1~200mm
Components height	≤32mm( or customized)
Power	60W
Machine dimension	710x450x420mm	900x450x420mm
Weight	55kg	75kg

Blade Moving 600mm Cutting Length V-cut PCB Separating Machine

Blade Moving 600mm Cutting Length V-cut PCB Separating Machine Images
